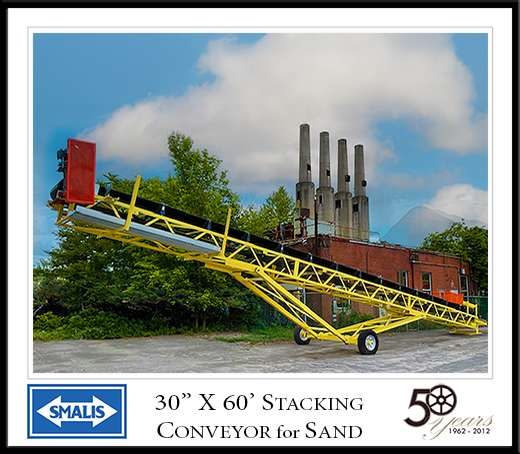

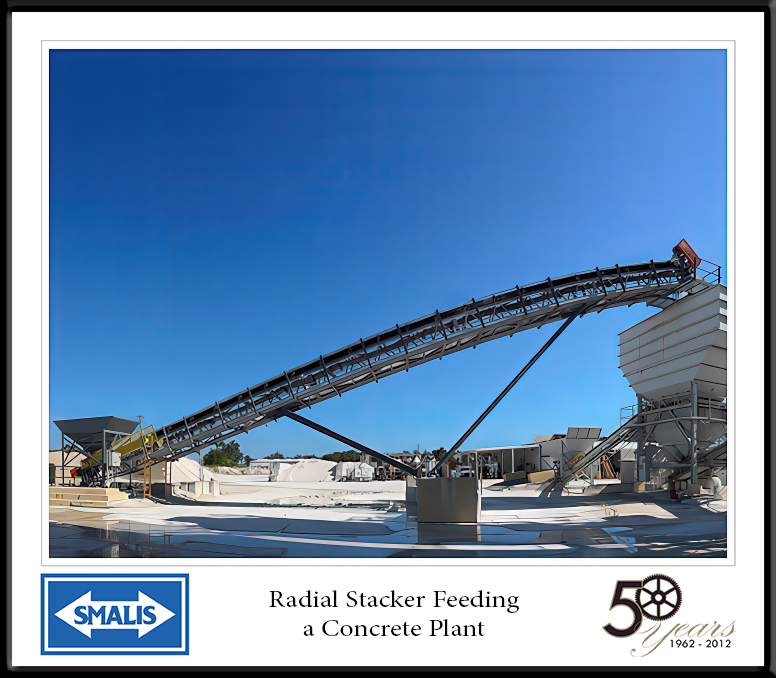

No matter what your requirements are from moving coal, aggregates, mulch, grain, scrap metal, or virtually any bulk material, Smalis provides rugged, high-quality, affordable radial stackers and portable radial stackers to fit your needs and reduce your production costs. Smalis radial stackers can be custom-built with virtually any configuration of components or options you may require.
Custom Painting
Smalis is your custom-painting specialist! We offer painting services with several high performance coatings, for all environments: Epoxy, Marine, Chemical Resistance, Galvanizing, and Stainless Steel. We can give your radial stacker any finish or color you may choose.
TEFC electric motor – 3 phase 230/460v, hydraulic, or gas as options
Shaft mount gear box complete with sheaves, bushings and v-belts
Cema B 4" diameter sealed troughing idlers on 4' centers
Cema B 4" diameter sealed return idlers on 10' centers
Adjustable manual raise/lower
Tires and wheels with heavy-duty axle assembly
2-Ply 220 PIW Belting
4' skirted receiving hopper
Primed and painted with your choice of color
Belt Width of 18" to 60" in a wide range of lengths
Road portable or site stationary
Hood covers and belt scrapers
Cema C, D or E idlers
3- or 4-ply belt
Power travel with or without remote control
Power raise
Galvanized walkway
Standard Sizes
The following are our standard radial stacker sizes although we can customize each to fit your individual needs with a variety of radial stacker conveyor components and options:
Please provide information regarding the radial stacker and application. A Smalis representative will be in contact with you. (* Indicates a Required Field)
